Digital Frequency Conversion GeneratorYour position: Home > Digital Frequency Conversion Generator

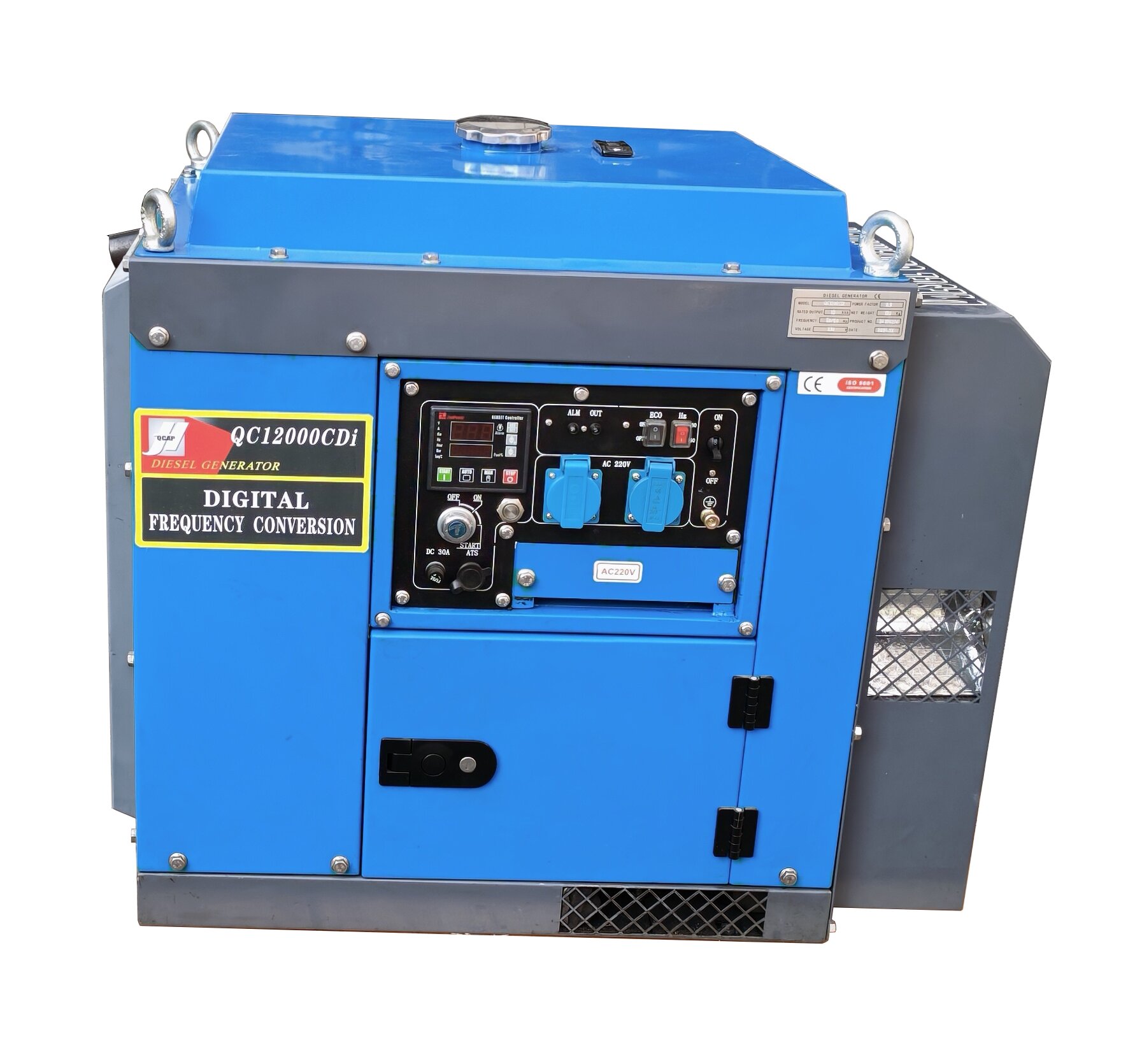

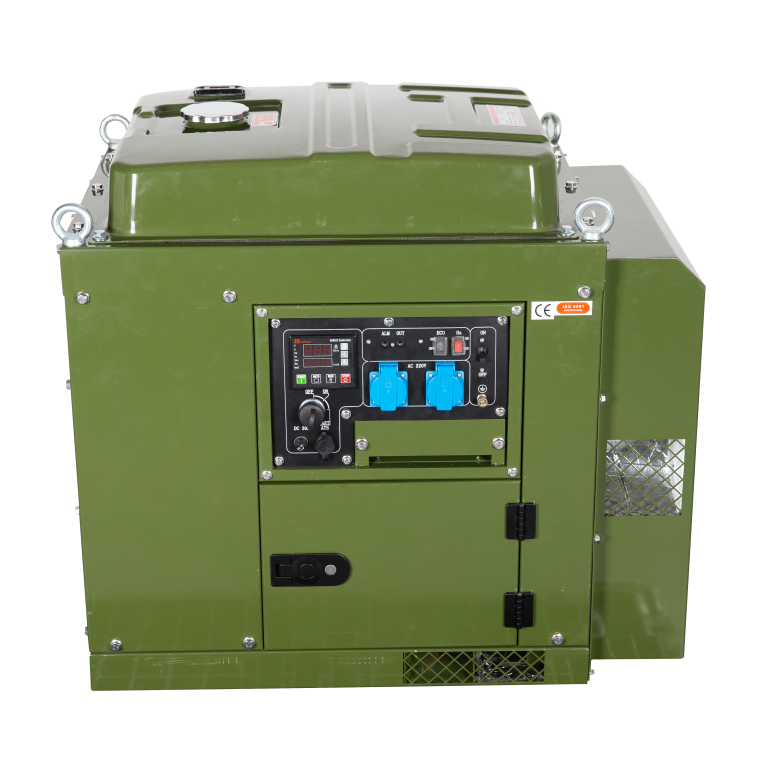

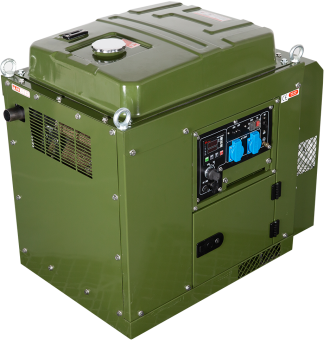

Digital Frequency Conversion Silent Diesel Generator
- Product description: Built-in permanent magnet generator design, ultra-small size and ultra-light weight; The speed changes with the load and automatically works at the lowest fuel consumption; Low energy consumption, l
Product introduction
Features
1.Ultra-compact size and ultra-light weight (weight reduction of over 50%)
2.Globally leading digital adaptive inverter technology for light-duty diesel engines
3.Features soft start, shock resistance, high load-bearing capacity, and no need for additional power reserve
4.Standard sine wave, high power generation quality, low noise, high reliability, and overall energy savings of over 40%
Advantages:
1.Achieves "instant start" at altitudes of up to 5300 meters (adaptive to the environment)
2.Achieves "instant start" in extremely cold environments down to -50°C
3.Meets the fast charging requirements for drones
| Specification | QC12000CDi |
| Max output power | 9KW |
| Rated Voltafge/frequency | 230V/400V、50Hz/60Hz |
| Working speed(rpm) | 2400-3500 |
| Phase No. | Single-phase / Three-phase equal power |
| Excitation mode | Permanent magnet digital variable frequency |
| Insulation | F |
| Control mode | Full-automatic |
| Noise@7m (dB) | 58 |
| Dimension(LxWxH)(mm) | 845x550x730 |
| Net Weight(kg） | 120 |
| Engine model | QC570i |
| Cooling way | Air-cooled |
| Starting way | Electric |
| Lube oil capacity(L) | 1.7 |
| Fuel tank capacity(L) | 40 |
| Starting battery capacity | 12V 36AH |
