Portable diesel fire pumpYour position: Home > Portable diesel fire pump

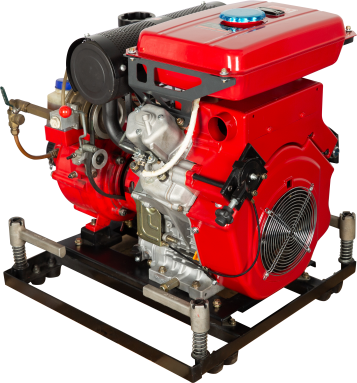

Portable Diesel Fire Pump BJD15A
- Product description: Adopting single-cylinder engine can reach the lift driven by two-cylinder engine; High lift, small volume, low energy consumption.
Product introduction
| Model | BJD15A | BJ20B-2H | ||
| Water pump inlet | Joint type | Screw type | Screw type | |
| Joint caliber | 65mm | 80mm | ||
| Water pump outlet | Joint type | Gear type | Gear type | |
| Joint caliber | 65mm | 65mm | ||
| Rated flow (L/min ) | ≥700 | ≥660 | ||
| Outlet pressure(Mpa) | 0.7 | 0.8 | ||
| Max.pressure (Mpa) | 0.75 | 1.45 | ||
| Priming time (s) | ≤20 | ≤20 | ||
| Starting way | Electric | |||
| Max.depth of sucking (m) | 7 | 9 | ||
| Net weight(kg) | ≤75 | <130KG | ||
| Outer size ( L x W x H)(mm) | 560x560x550 | 830×640×690mm | ||
| Engine model | QC570 | QC1100X | ||
