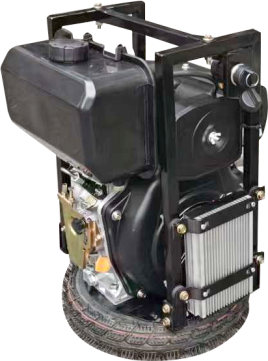

Open frame diesel generator set
- Product description: Product description: Lightest weight&smallest volume based on same power, Double power based on same volume; Low fuel consumption,good economy; Excellent performance,high reliability.
Product introduction
1.Lightest weight&smallest volume based on same power
2.Double power based on same volume
3.Low fuel consumption,good economy
4.Excellent performance,high reliability.
|
Model |
QC3000V |
|
Rated Frequency (Hz) |
50 60 |
|
Output power (KVA) |
2.7 |
|
Rated voltage (V) |
230 |
|
Phase No. |
single |
|
Power factor cos φ |
1 |
|
Insulation |
F |
|
Pole No. |
Multi-stage permanent |
|
Excitation mode |
Self-excitation and constant voltage (with AVR) |
|
DC12V output(A) |
12V 8.3A |
|
Panel type |
Intelligent control panel |
|
Dimension(LxWxH)(mm) |
320×320×440 |
|
Net weight (kg) |
35 |
|
Noise (7m) dB(A) |
82dB(A) |
|
Engine model |
QC250 |
|
Engine type |
Air-cooled, 4-stroke, direct injection |
|
Displacement(ml) |
250 |
|
Lubricating way |
Pressure & splashing |
|
Starting way |
Electric |
|
Lube oil capacity (L) |
0.9 |
|
Oil motor capacity (V-KW) |
12V 0.7kW |
|
Charging generator capacity（V-A） |
12V 8.3A |
|
Start-up battery capacity（V-Ah） |
12V 16AH |
|
Fuel tank capacity (L) |
6L |
